Wiring





Common connectors

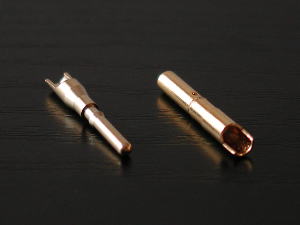

AMP style golden 2mm

Very useful in small models. Really hold the amp without any glitch for most ferro-05 applications. Ideal for 1:10 ferro-powered cars or up to typical 35A applications...

AMP Nylon cases help secure the connection. A way to consider if young end users are concerned

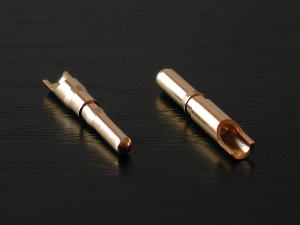

AMP style golden 2.5mm

These models are less common so I prefer 2mm ones ... The male 2mm and 2.5mm are so similar than a mistake is quick done ... Up to 40A

Be careful !

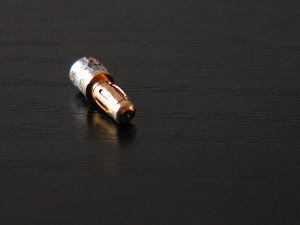

SCHULZE style golden 3.5mm

Schulze ESCs come with these female plugs so the need for the male ones on the motors ... Frankly expensive but they're a great help when considering 30+ Amp in tight fuselages or hulls ...

Using such expensive plugs with Speed480 based powerplants is a shame but required when using Schulze 35 ESCs ... Prefer a more suitable ESC !

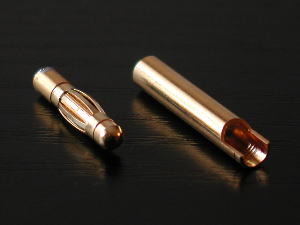

PK style golden 4mm

Very convenient model for most powerful applications. Their complete compatibility with 4mm banana plugs greatly help discharging or break-in applications.

They can accomodate 'large'' 4mm² wires but require at least a 50W iron to be correctly soldered

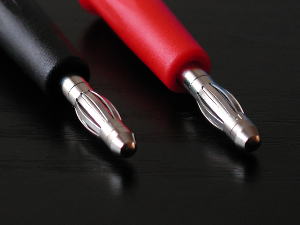

Classical 4mm banana plugs

Note the exact compatibility with the PK 4mm plugs

Golden plugs are virtually reusable for years. So you can stock them once the wiring isn't used

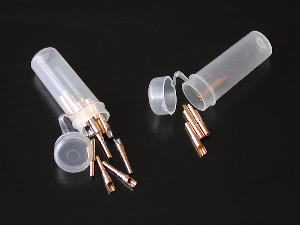

Ear plugs cans are very convenient to do so !



Cells bridges

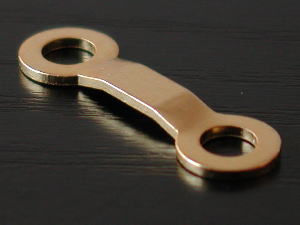

SMT golden bridge

They're worth the price !

Use a powerful enough iron in order to solder them instantly (less heat load to the cell)



Common bundle

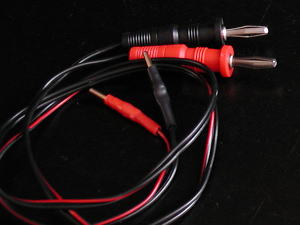

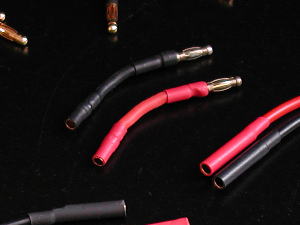

Common 4mm and 3.5mm wiring ...

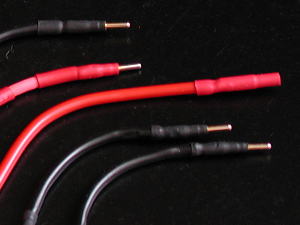

2mm charging wiring

Common 2mm wiring







 . .
